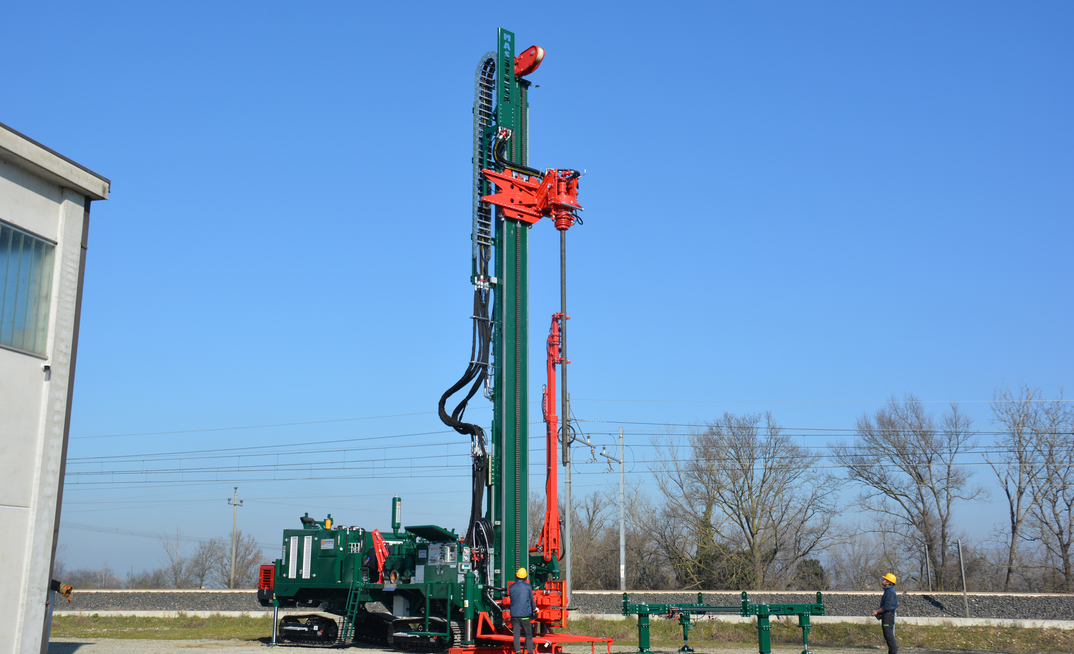

We proudly introduce this brand new Mi45, a special drilling beast: the Massenza Drilling Rigs Mi45 model mounted for the first time on double and oscillating crawler chassis.
Our Mi45 drill rig can reach more than 1000m depth and can be equipped depending on the needs with either a mud pump or a high-capacity compressor. The installation can be on a truck or semi-trailer, and in the latter case, it allows for handling 9m rods. Like all Massenza drilling rigs, this Mi45 has been designed and built with specific customer requirements, making it unique and personalized.
Here are the main features:
• FPT diesel engine - stage V maximum power 384kW (514hp) at 2100rpm
• travelling block with two pulleys and swivel double hook, capacity: 50t
• Mast capacity 55t up and down speed max 54m/min (177ft/min) pull-up max 450kN (101,164lbf) pull-down max 210kN (47,212lbf)
• Massenza rotary head TM25.3 model (with tilting and side parking option) maximum torque of 23,699Nm (17,479lb·ft) maximum speed of 201rpm
• hydraulic chuck torque capacity: 33,000Nm (24,339lb·ft) holding capacity: 550kN (124,550lbf)
• Massenza double hydraulic clamp model MS520 maximum free passage diameter 520mm (20-1/2in) maximum clamping force 362kN (81,385lbf)
• Massenza mud pump model PM 200 7-1/2 x 8in maximum flow 1435l/min (379 us gal/hour) maximum pressure 40 bar (580psi)
• frontal automatic rods charger – "free handling system" for fast and completely automatic operations
• security infrared intrusion barrier
• radio remote control for crawler chassis and radio remote control on tripod with display
• control panel on board
• removable work platform during drilling operation and transport and removable operator platform
• rear stabilizer with mechanical block
• generator and welding machine
In March 2025, our Mi45 product took centre stage at a job site in Tuscany, located in the heart of Italy. Our technician was on hand to assist for the drill rig commissioning, ensuring the customer understood how to operate it and maximize the machine potential.
The Mi45 was deployed for a challenging mineral salt extraction task, where the terrain was both rough and restricted. This is exactly the decision to mount the Mi45 on the double crawler chassis.
Once the equipment reached the drilling site, the team began their operation, drilling efficiently and effectively, showcasing the power and reliability of the Mi45 even in the most demanding conditions.
This demonstration not only highlighted the Mi45's capabilities but also reinforced the importance of hands-on training for our clients to ensure seamless integration into their operations.
Watch the full video about this brand-new Mi45 drilling rigs on our YouTube channel!
